Steam Heating Gasket PHE

The GHE GS series gasketed plate heat exchangers are designed for steam heating and condensing applications.

With our unique plate geometry, robust plate design and heat resistant gaskets, they can withstand the demands of temperature and pressure. Additionally, their efficient heat transfer lowers pump investment and energy costs by reducing cooling flow. They even save a lot of space, as their design is much more compact than the shell-and-tube models used in these applications previously.

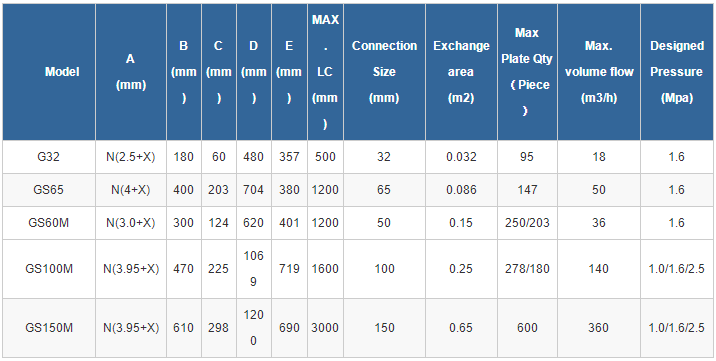

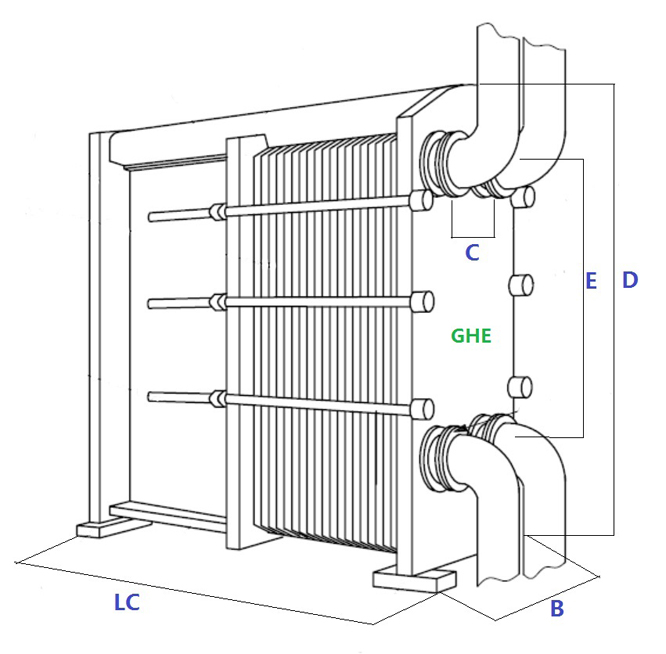

Steam Heating Gasket PHE Specification

N* is plate number

X* is plate thickness
