U Type Evaporator

Features:

The shell-and-tube heat exchanger has a solid structure and can be manufactured with a variety of materials. It has strong adaptability, and is especially widely used in high temperature, high pressure and large devices.

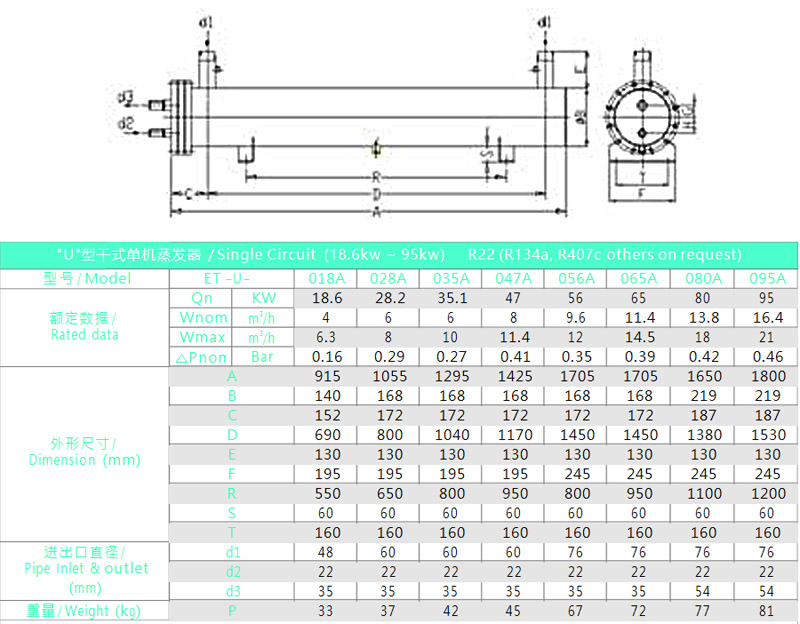

"U" Type Evaporator Specification

Note

1.工作条件 / Working CTditions (Qn)：Te=2℃, Tc=40℃, Ti=12℃, T0=7℃；

2.Q n - 额定制冷量 / Cooling cap.; W nom – 冷冻水流量 / Chiller water flow rate; W max - 冷冻水流量 / max Chiller water flow rate; △P nom - 循环冷冻水压降 / Water Pressure Drop;
